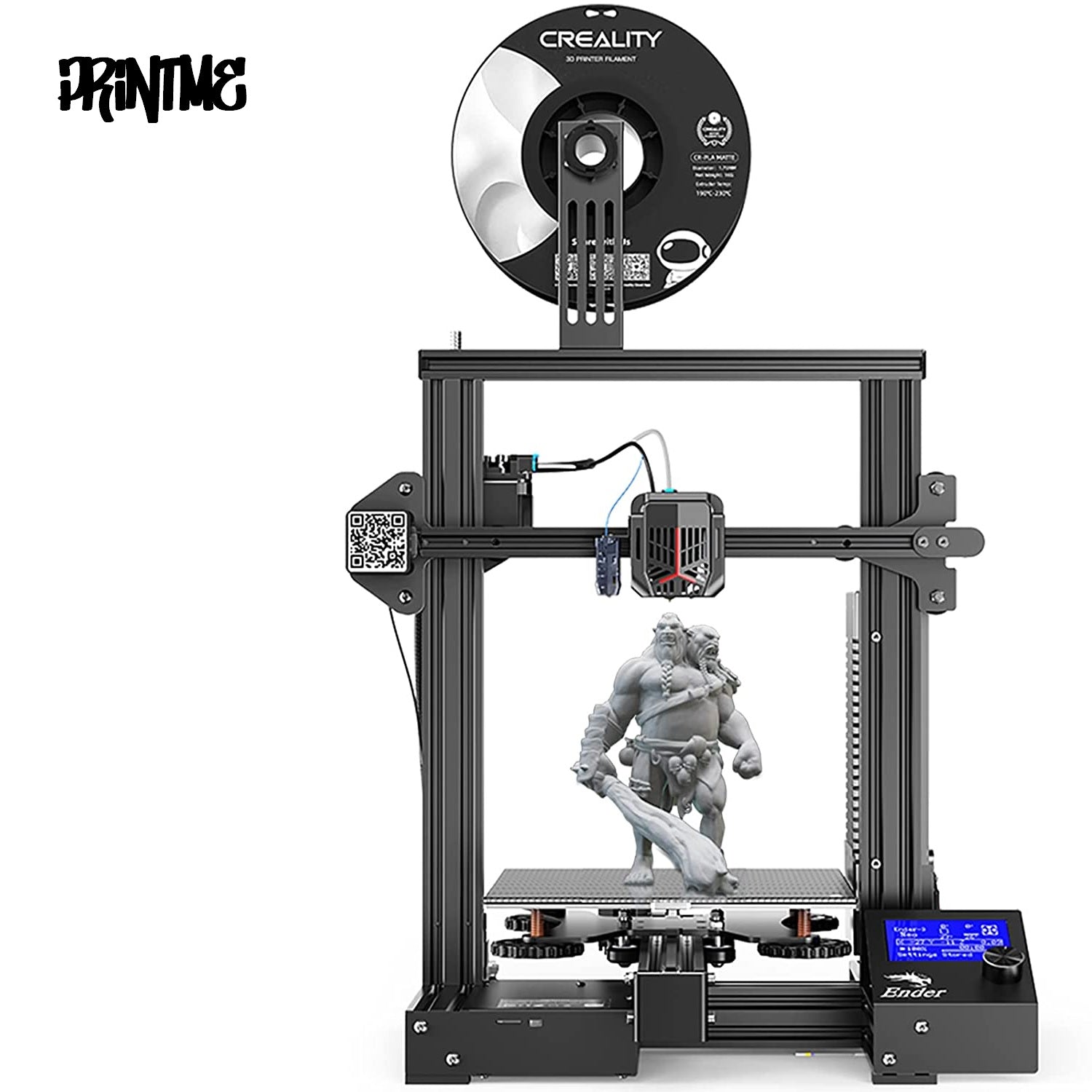

Creality Ender 3 Neo 3D Printer 220x220x250mm

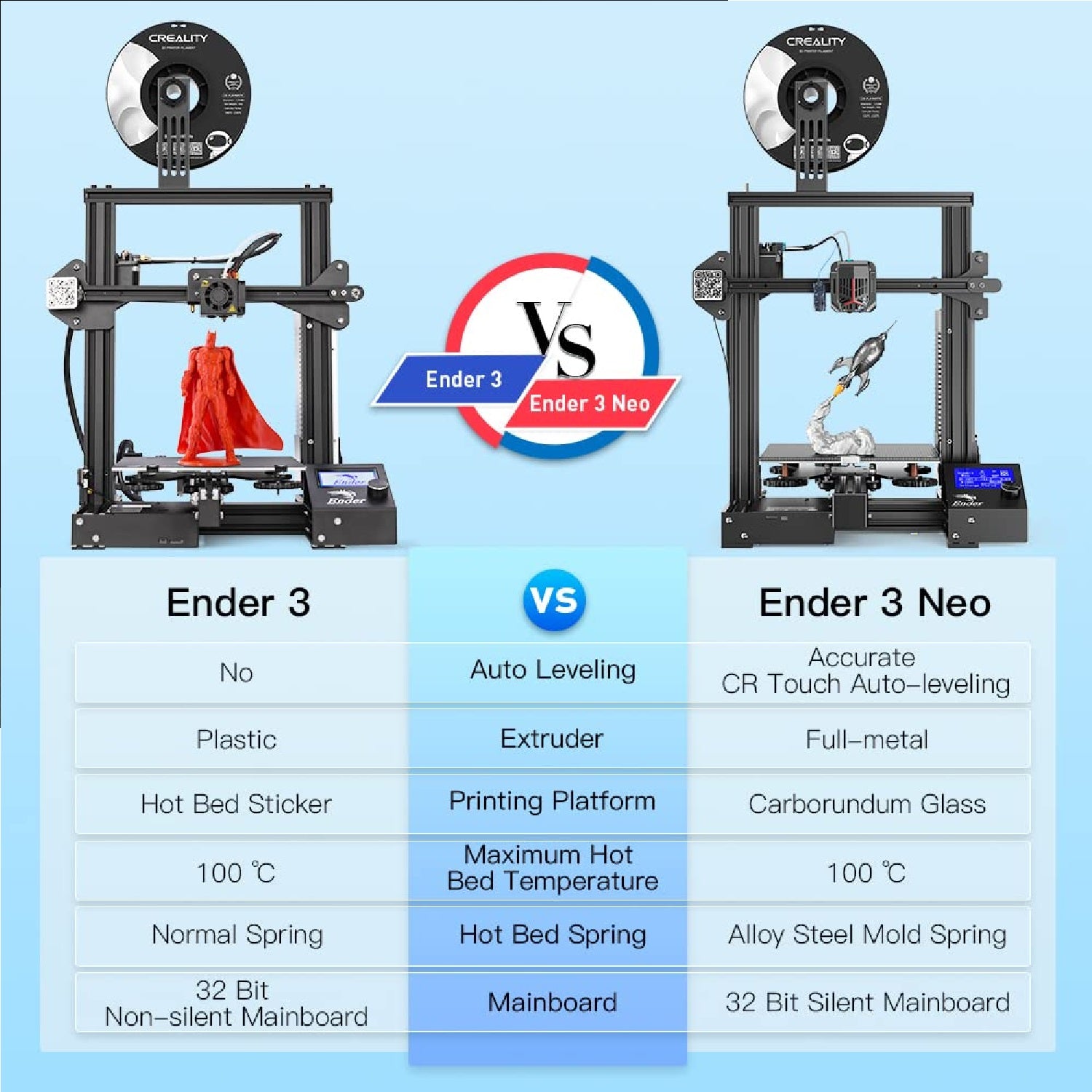

Ender 3 Neo: Compared to Ender 3 3D printer, Ender 3 Neo has some upgraded design. Ender 3 Neo equips the auto leveling kit CR Touch, which save your time in leveling process. Also, the extruder has upgraded in full-metal extruder, full-metal extruder with greater force enables smooth feeding. The corrugated heat sink enlarges the radiating area, cooling down quickly. The printing platform is the carborundum glass build surface, the hot bed spring is module spring, the mainboard is silent.

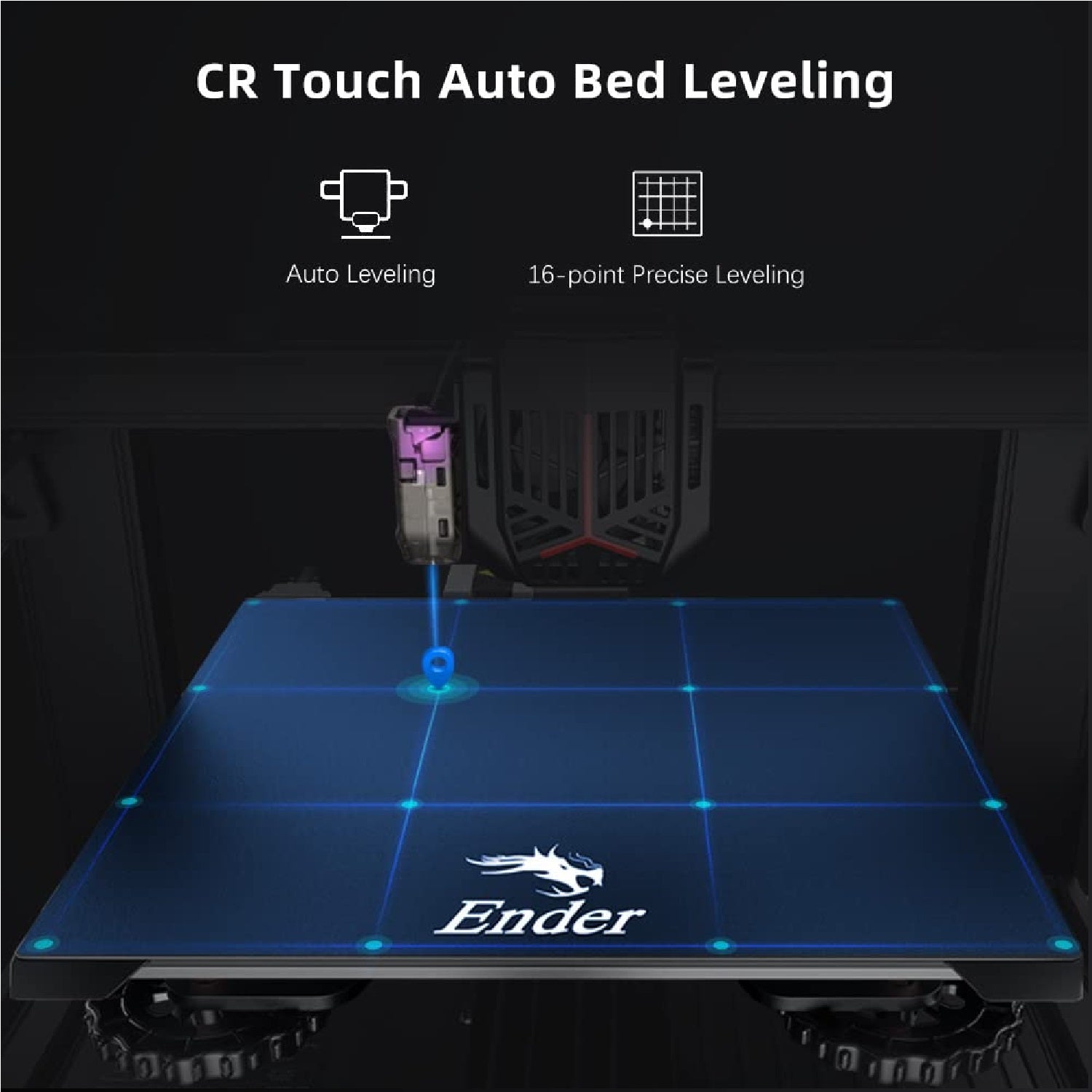

Leveling Method Upgrades:   CR Touch Auto Leveling
With CR Touch, the print height of the 16 points on the build surface can be automatically compensated, ensuring the leveling accuracy and enhancing the printing quality.

Large Corrugated Heat Sink, Quick Heat Dissipation
A large, corrugated heat sink is added on Ender 3 Neo’s hotend, which effectively enlarges the radiating area, enabling fast cooling down.

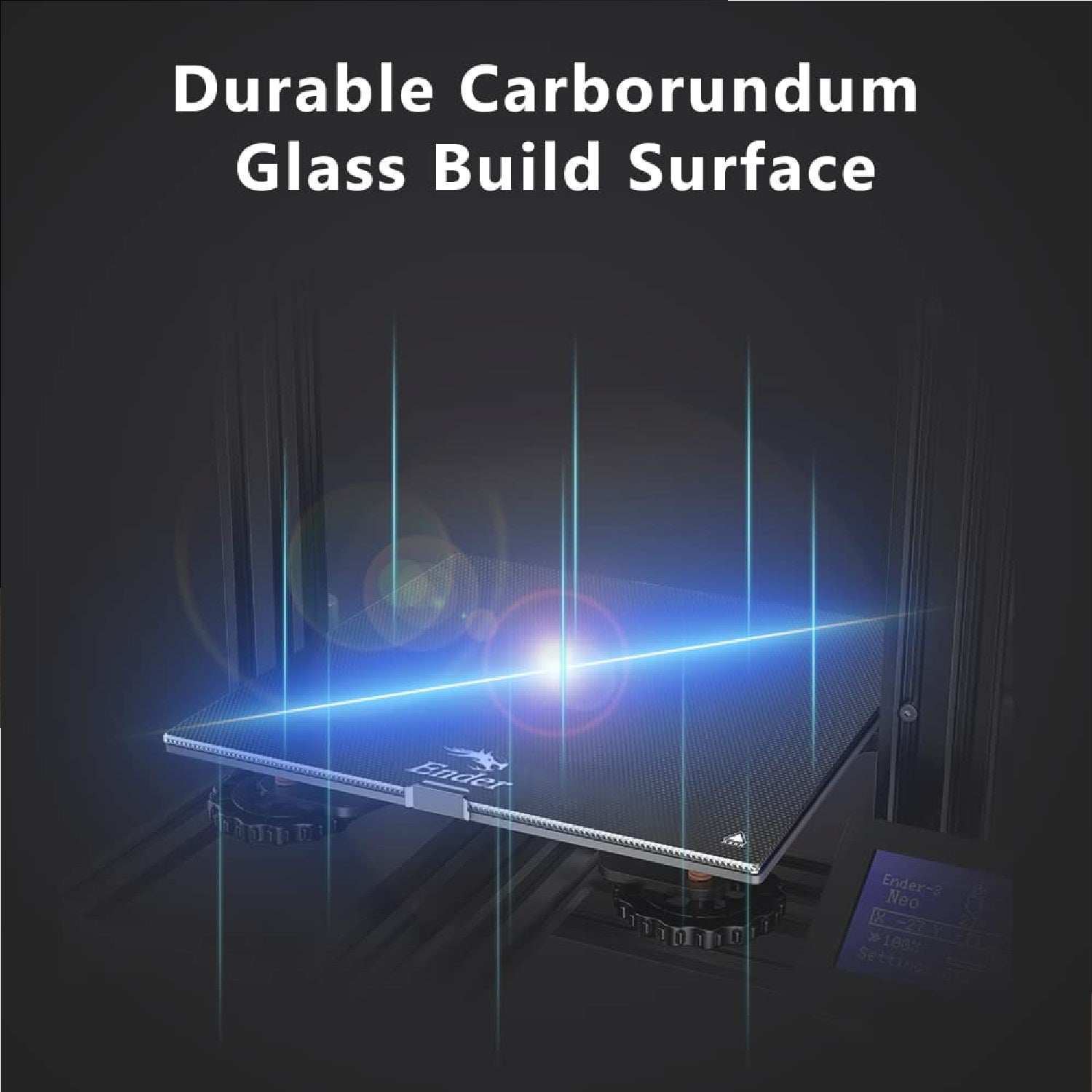

Carborundum Glass Build Surface
The upgraded 3D printer glass plate provides the flattest build surface in the market, ensuring high flatness for the bottom of print, make sure the model can be firmly attached to the surface of the print platform.

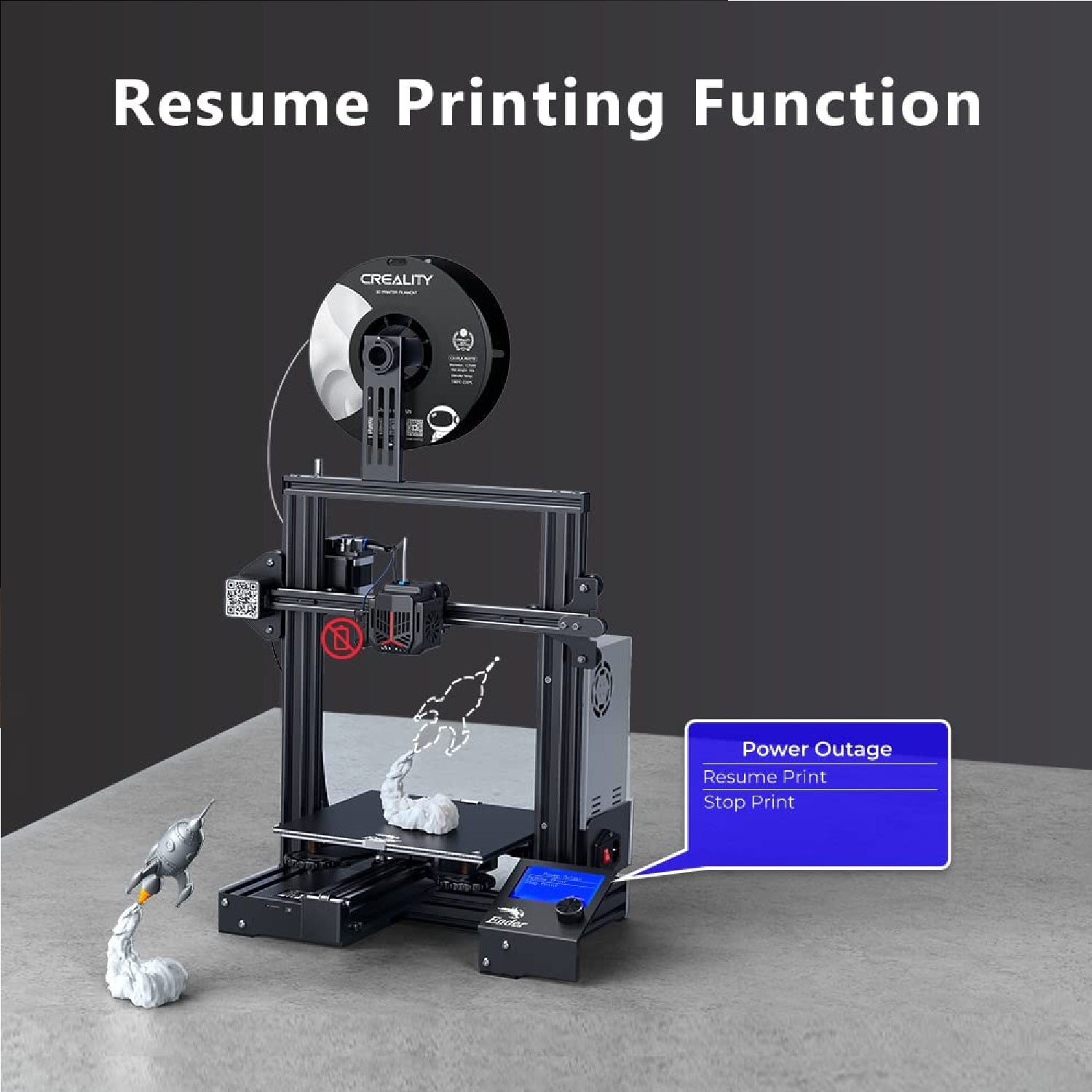

Resume Printing Function
Ender 3 Neo can resume printing from the last recorded extruder position after suffering unexpected power outages.

Technical Specifications

Molding Technology FDM
Build Volume 220*220*250 mm
Machine Dimension 440*440*465 mm
Package Dimension 530*380*200 mm
Net Weight 7 kg
Gross Weight 8.3 kg
Printing Speed Max. 120 mm/s
Printing Precison ±0.1 mm
Extruder Material Full-metal
Leveling Mode CR Touch
Display 12864 Mono Knob Screen

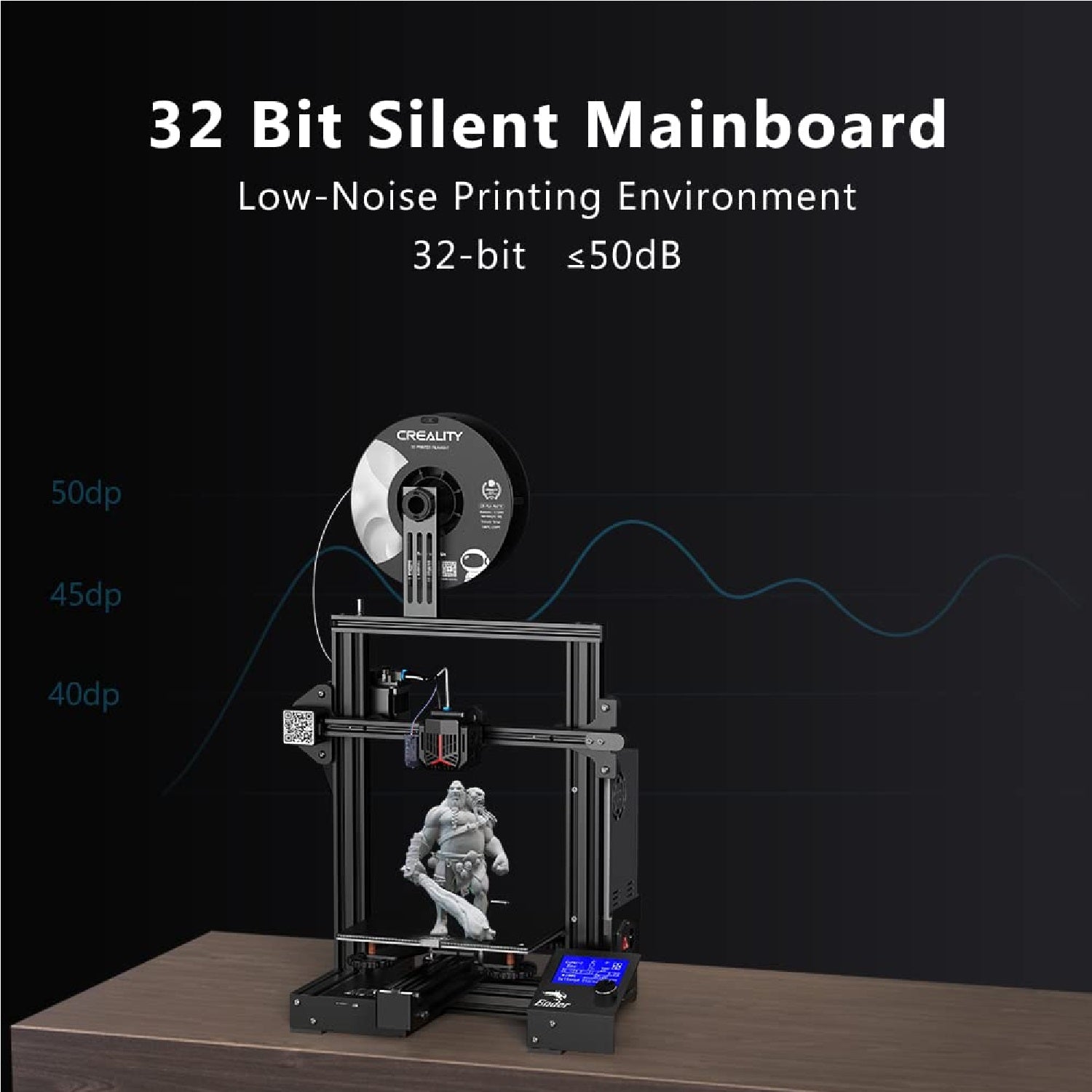

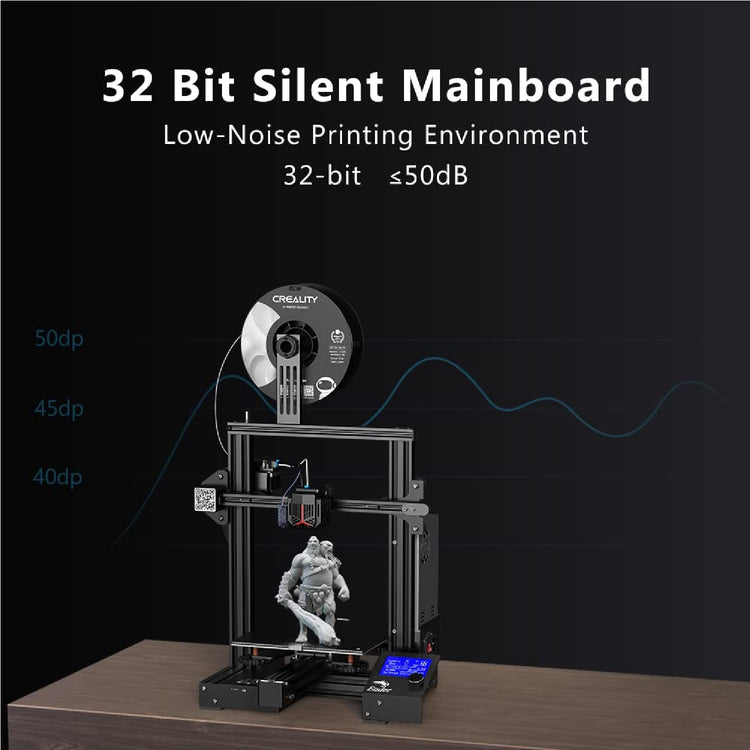

Mainboard 32-bit Silent Mainboard
Resume Printing Yes
Rated Voltage 100-120 V~200-240 V 50/60 Hz
Layer Height 0.1-0.4 mm
Filament Diameter 1.75 mm
Nozzle Quantity 1
Nozzle Diameter 0.4 mm (standard)
Nozzle Temperature 260°C
Heat Bed Temperature 100°C
Build Surface Carborundum Glass
Extruder Bowden Extruder
Rated Power 350 W
Slicing Software Creality Slicer/Cura/ Simplify3D
Data Transmission Method TF Card/ USB
3D File Format STL/OBJ/AMF
Supported Filament PLA/TPU/ABS/PETG
Supported Language Chinese/English /Español Deutsche/ Français Pусский/ Português Italiano/ Türk
